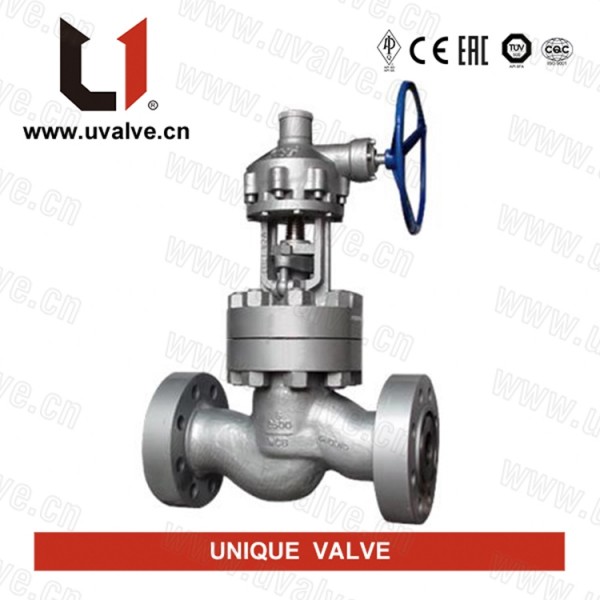

- Product Description
- Product Range:
● Size: NPS 1/2”~ 24”
● Pressure Rating: Class 150 -2500LB
Design Feature:
● Bolted bonnet (BB) or Pressure seal bonnet (PSB) design.
● Casting or forged body.
● Full port or reduced port design.
● Back seal design.
● Stem is one-piece wrought material.
● Tapered disc, Flat disc., Regulating Disc, Parabolic disc.
● Outside Screw and Yoke.
● Rising stem and non-rising stem
● Renewable Seat or welding Seat.
● Special request: Locking device ( Interlock ) ,Position indicator. Limit Switch.
● Extend bonnet for cryogenic & underground Service.
Materials:
● WCB, LCB, WC6, WC9, C12, C5, CF8, CF8M, CF3, CF3M, CN7M etc.
Operators:
● Lever operated
● Gearbox Operated
● Electric Actuators
● Piston Spring Return Pneumatic Actuators
● Scotch Yoke Pneumatic Actuators
● Electro-hydraulic actuator.Standards complianceDesign and Manufacture: ANSI B16.34, BS1873Face to face(end to end): ANSI B16.10Flanged connection: ANSI B16.5Butt welded end: ANSI B16.25Test and inspection: API 598A. Anti-friction ball thrust bearing: Reduces friction between mating parts to ensure smooth operationB. Grub screw: Secures yoke nut in the bonnetC. Grease nipple: Supplies lubricant to the mating partsMaterialsNO.Part nameMaterial18Grub screwCarbon steel17Hand wheel nutCarbon steel16Hand wheelCarbon steel15Eye bolt and nutA 193 B7/A194 4~A193 B8/A194 814PinCarbon steel/SS13Stem nutA 439-D2/cu-alloy12Gland flangeCarbon steel11Gland bushStain steel10Back seatStain steel09Pisc nutCS+SS/SS/SS+STL08StemStain steel07Seat ringSee body material06DiscNO.Part nameWCBLCBWC6WC905Stud and nutA193 Gr B7/A194 Gr 2HA320 Gr L7/A194 Gr 4A193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/704Gland PackingGraphiteGraphiteGraphiteGraphite03GasketSpiral wound/Soft lronSpiral wound/Soft lronSpiral wound/SS304Spiral wound/SS30402BonnetA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC901BodyA216 Gr WCBA352 Gr LCBA271 Gr WC6A271 Gr WC9NO.Part nameC5C12CF8CF8M05Stud and nutA193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7A193 Gr B16/A194 Gr 4/7A193 Gr B7/A194 Gr 2H04Gland PackingGraphiteGraphiteGraphiteGraphite03GasketSpiral wound/Soft lronSpiral wound/Soft lronSpiral wound/SS304Spiral wound/SS31602BonnetA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8M01BodyA217 Gr C5A217 Gr C12A351 Gr CF8A351 Gr CF8MCLASS 150~1500 CAST STEEL GLOBE VALVEDimensions (mm) and weight for ANSI Class 150Sizeinch22-1/2345681012141618L,L2-RF,BWmm203216241292356406495622698787914978L1-RTJmm216229254305368419508635711800927991HW/HGmm330390410475540585725825940120012701300DW/DGmm200250250300350350450500600600650650WeightKG23294059951151782683855407601050Dimensions (mm) and weight for ANSI Class 300Sizeinch22-1/23456810121416L,L2-RF,BWmm267292318356400444559622711838863L1-RTJmm283308333371416460575638727854879HW/HGmm350425485520565655825920115512501295DW/DGmm200250300300350350500600700700450WeightKG304560831351622653755257651100Dimensions (mm) and weight for ANSI Class 600Sizeinch22-1/23456810L,L2-RF,BWmm292330356432508559660787L1-RTJmm295333359435511562664791HW/HGmm4204905505906207009501140DW/DGmm250300300350500500600600WeightKG396176122210245447692Dimensions (mm) and weight for ANSI Class 900Sizeinch22-1/234568L,L2-RF,BWmm368419381457559610737L1-RTJmm371422384460562613740HW/HGmm4955406006556707801050DW/DGmm300350350500500350350WeightKG9679117178305355730Dimensions (mm) and weight for ANSI Class 1500Sizeinch22-1/2346L,L2-RF,BWmm368419470546705L1-RTJmm371422473<, /DIV>549711HW/HGmm550580625750925DW/DGmm300350400450600WeightKG116125145210475
