    Cryogenic globe valve HOME >> PRODUCTS >> Globe Valve

    Product Description

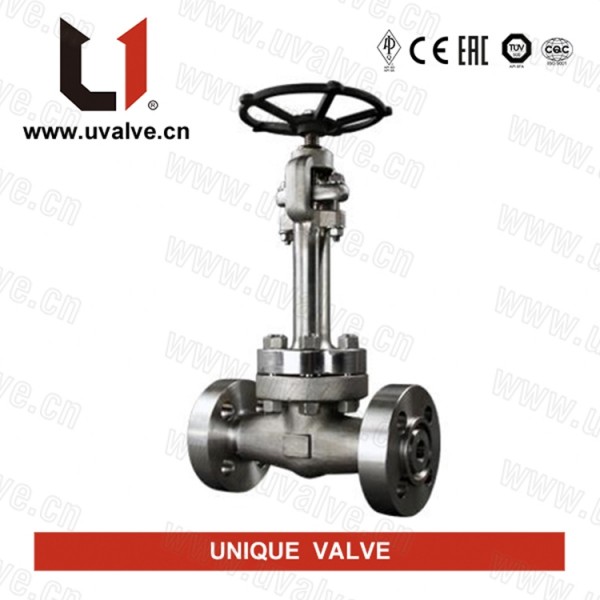

    Product name:Cryogenic Globe Valve
    Size: 2"-24"

    Pressure: 150LB,300LB,600LB,900LB

    Material: ASTM A352 LCB, LC1, LC2, LC3, LC4 A351 CF8, A351 CF8M ect
    Connection: Flanges,RTJ Flange,Butt Weld,Hub end,Groove
    Operate: Handwheel, Wormgear, Gearbox, Penumatic Actuator, Electric Actuator, Hydraulic Actuator


    1,Straight pattern body design
    2,OS&Y Outside Screw and Yoke, Bolted Bonnet,
    3,Rising stem,Extended bonnet/stem,extended length according to temperature and size of valve.
    4,The temperature is generally divided in to three. T>-46, -46≤ T101,-101≤T≤-196.

    Design and Manufacture:ANSIB16.34,API600,BS1873
    Pressure-temperature rating: ASME B16.34
    Face to face(end to end):ANSIB16.10
    End Connection: 2"-24" ASME B16.5; 26" -42" ASME B16.47; B.W end ASME B16.25
    Test and inspection:API598,BS6755
