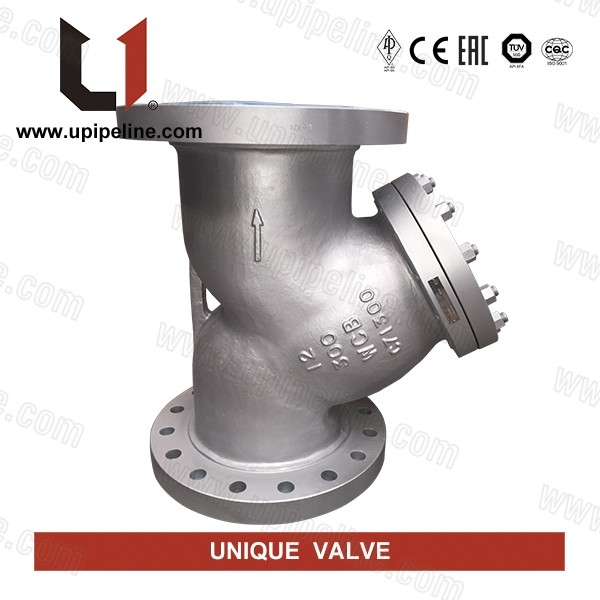

ANSI Class150 Flange Y-type strainer
Y-type strainer is a indispensable device in transmission pipeline system, usually installed inlet in pressure reducing valve, pressure relief valve, water valve and other device, the valve is used to remove impurities in order to protect the valve and equipment in normal use.
Material: ASTM A351 CF8M / CF8 / ASTM A216 WCB
Pressure: CLASS 150/300/600/900
FLANGE DIMENSION: ANSI B16.5
FACE TO FACE: ANSI B16.5
Temperature range: ≤250℃
1,Strong body material,can't broken by transfer and install.
2,Streamline design for low pressure drop.Epoxy coating,prevent corrosion and rust
3,There is pressure tap leave on the bonnet,can install pressure measuring device to test pipe pressure
4,Can supply different precision filter according to different customer's request,clean easily
5,Dimension of inner cavity inlet is 1.2-1.3 time larger than size,the screen length is 1.5 time than normal,improve flow,Extended cleaning cycle
6,The screen is install by 45 degree,the mesh area is 3-4 times larger than nominal diameter area, lower flow resistance,larger flow
